Input

Power Supply

1P+N+PE

3P+N+PE

Rated Voltage

230V   AC

400V   AC

Rated Current

32A

16A

Frequency

50/60Hz

50/60Hz

Output

Output Voltage

230V   AC

400V   AC

Maximum Current

32A

16A

Rated Power

7kW

11kW/22KW

User Interface

Charge Connector

                     Type 2 cable

Cable Length

                       4m

Enclosure

                     Plastic PC940

LED Indicator

                     Green/Yellow/Red

RFID Reader

                     Mifare   ISO/IEC 14443 A

Start Mode

                     Plug&Play/RFID   card/App

Emergency Stop

                        No

Communication

Wi-Fi

                        Yes

Bluetooth

                        Optional

OCPP

                     OCPP 1.6 Json (OCPP 2.0 optional)

Safety

Energy Meter

                        No

RCD

                     6mA   DC

Ingress Protection

                        IP65

Impact Protection

                        IK10

Electrical   Protection

Over current protection, Residual current protection, Ground protection,Surge protection, Over/Under voltage protection, Over/Under frequency protection,Over/Under temperature protection

Certification

                       CE

Certification   Standard

    IEC 61851-1: 2019, IEC 61851-21-2:2021

Warranty

                  2 years

Environment

Installation

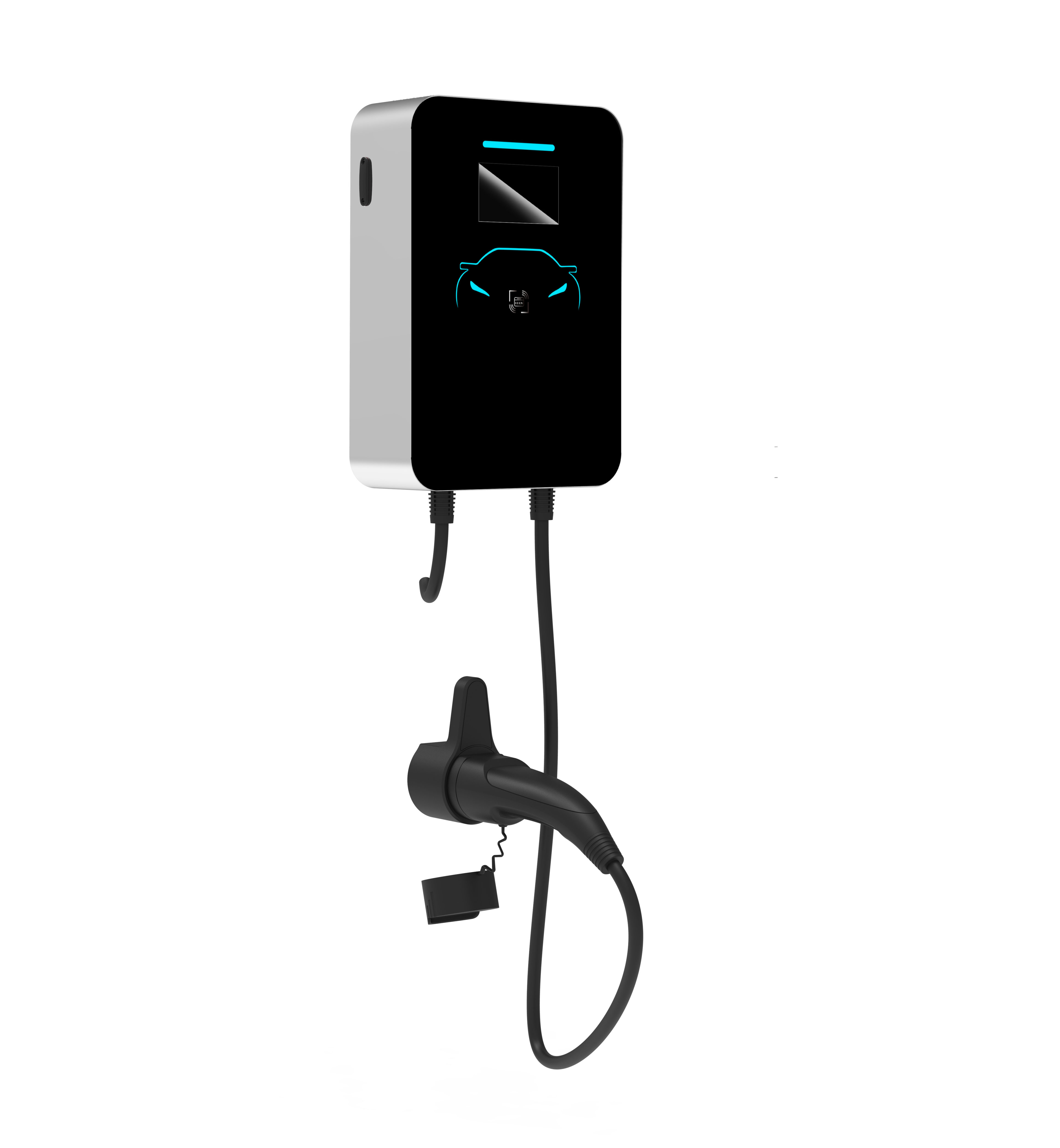

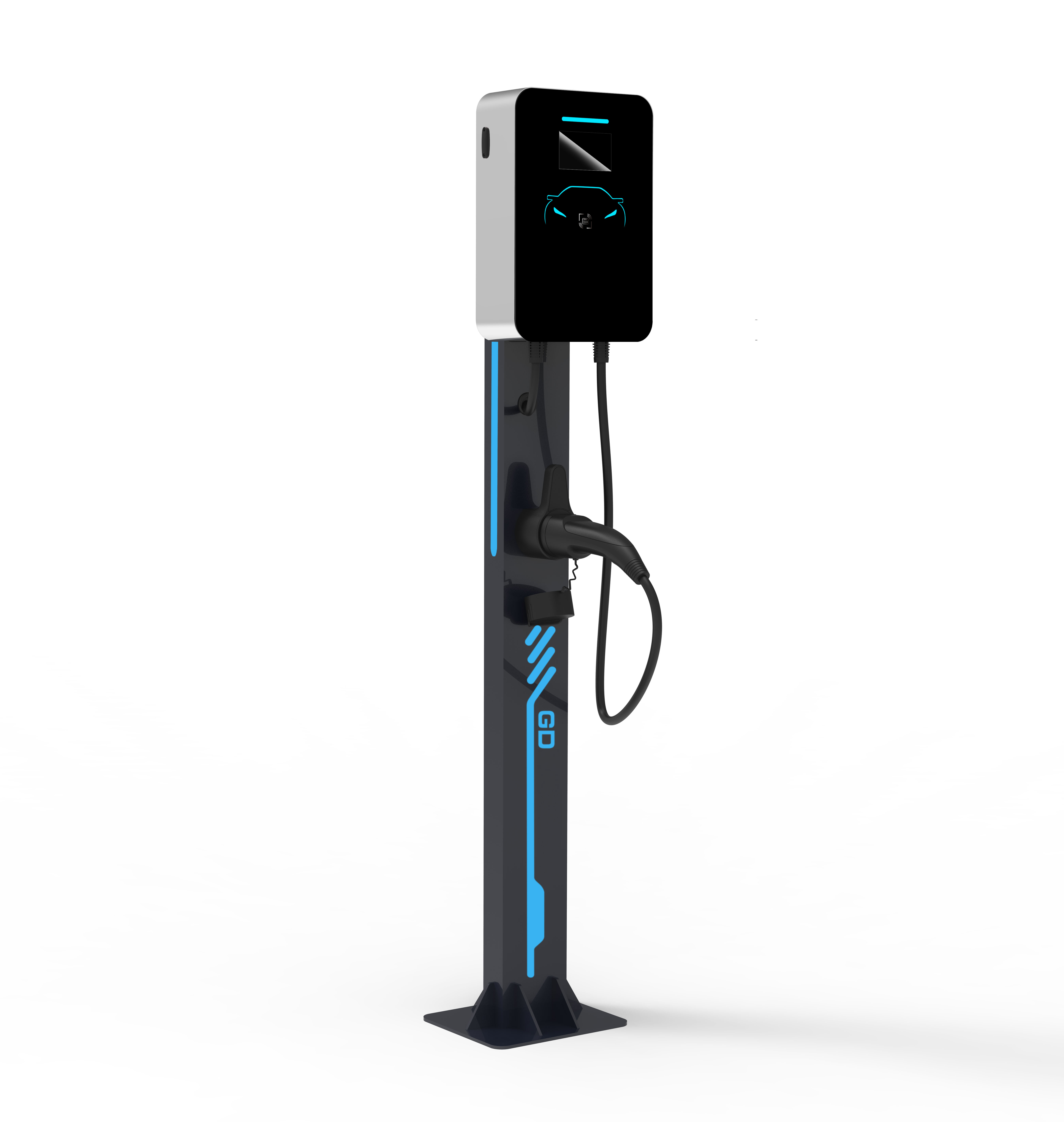

                 Wall-mount/Pole-mount

Work Temperature

                   -30℃~+50℃

Work Humidity

                    5%~95%

Work Altitude

                     <2000m

Package

Product Dimension

                    310*260*150mm (H*W*D)

Package Dimension

                    350*300*173mm (L*W*H)

Net Weight

 3.9kg

Gross Weight

                    4.0kg

External Package

                    Carton
